Products functions

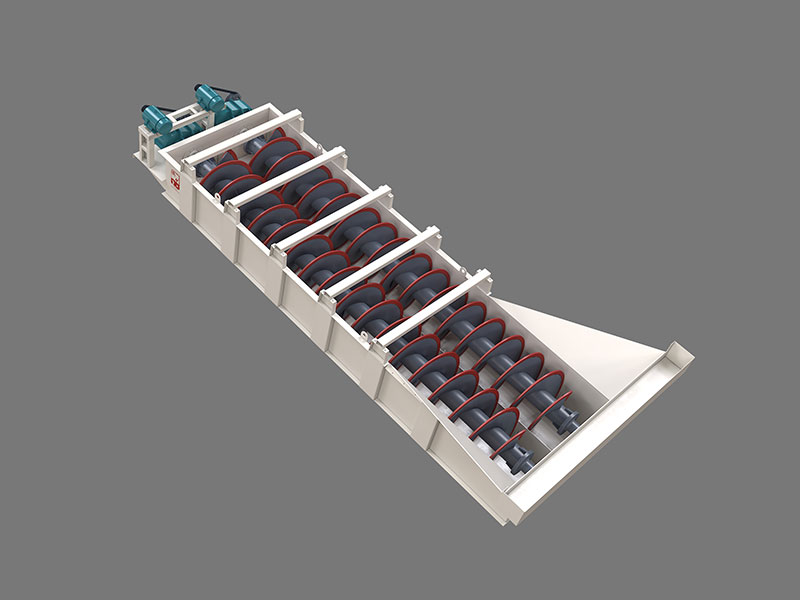

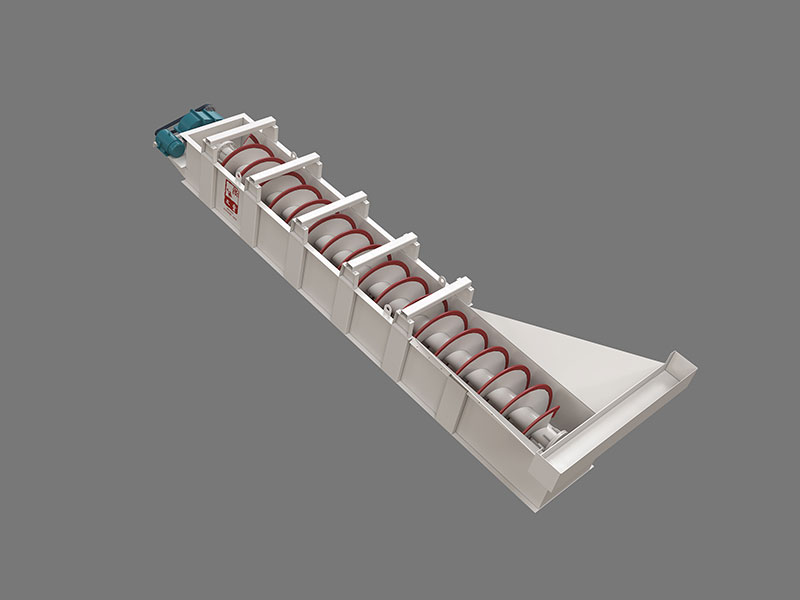

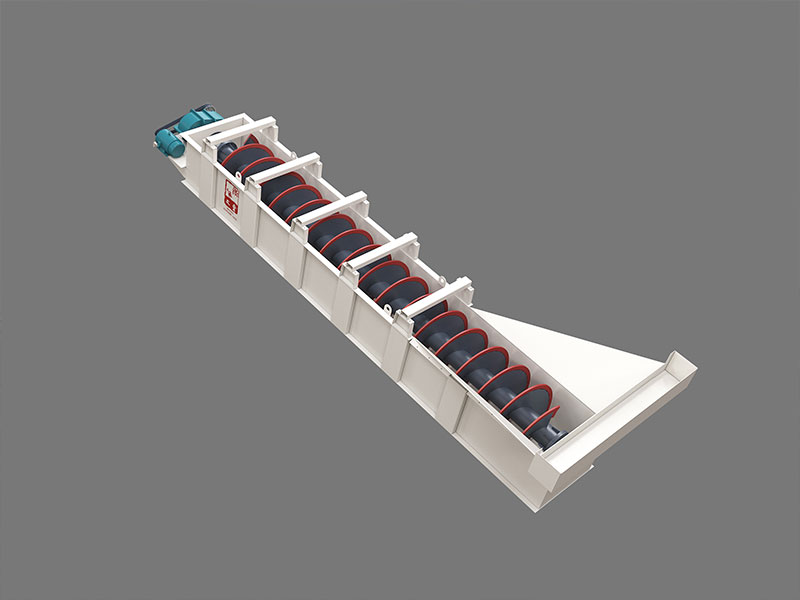

LX Series Sand Wet Washer can wash and separate mud and sundries in sand and gravel, with a novel sealing structure and adjustable overflow weir plate. The reliable transmission device ensures the effect of cleaning and dehydration, and is suitable for sand units such as roads, water conservancy, and construction.


Working principle

The spiral sand washing machine in the LX Series Sand Wet Washer utilizes the characteristics that particles of different granularity and densities have different settling velocities in the fluid: the sedimentation velocity of fine granularity and low density particles is slow; while the sedimentation velocity of large granularity and high density particles is fast. In this way, the dust and impurities are separated from the sand, and under the uniform agitation of the spiral blades, the purpose of filtering water, removing impurities, and lifting and conveying is achieved.




Product features

1. Simple structure and stable operation;

2. Bearings are separated from water and materials to avoid premature damage to the machine due to pollution and rust;

3. Suitable for various working environments;

4. The washed material has less loss and high washing efficiency, which can fully meet the requirements of high-grade materials;

5. Long service life, almost no wearing parts;

6. Very little maintenance is required, greatly reducing costs.


Product Details(Move the table left and right to view)
