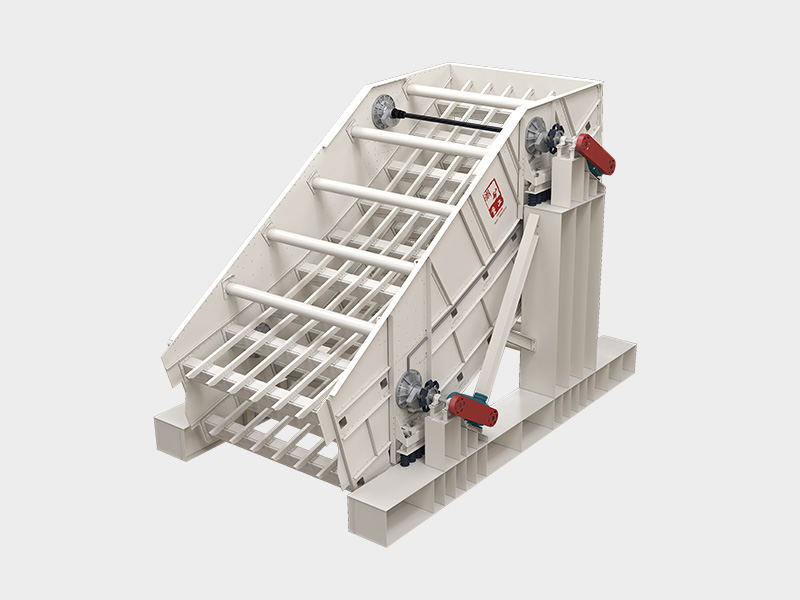

The movement trajectory of the ZXS banana vibrating screen is block eccentric linear vibration, and the entire series has multiple specifications, which can be used for screening and grading in industries such as coal preparation, mineral processing, and metallurgy.
The ZXS banana vibrating screen adopts dual motors to drive two sets of exciters with the same eccentric mass. When it performs self synchronization and reverse rotation, the centrifugal force generated along the vibration direction overlaps with each other. In other directions, the centrifugal force cancels out each other, forming a single excitation force along the vibration direction, causing the screen box to vibrate back and forth in a linear trajectory.
1.The screen surface adopts several different inclination angles for arrangement, and the feeding end adopts a large inclination angle 1.to make the material move quickly and layer quickly, which is more conducive to the material passing through the screen.
2.As the inclination angle of the screen surface decreases and the material on the screen surface gradually decreases due to sieving, 2.the flow rate of the material decreases, maintaining a relatively consistent thickness of the material on the screen surface, strength 2.-ening the interlayer effect of the material, and promoting the particle size smaller than the sieve hole to pass through the sieve hole, 2.thereby improving the screening efficiency and media removal efficiency of the screen machine.
3.Self synchronous linear motion, gear free maintenance, low noise, and reliable operation.
