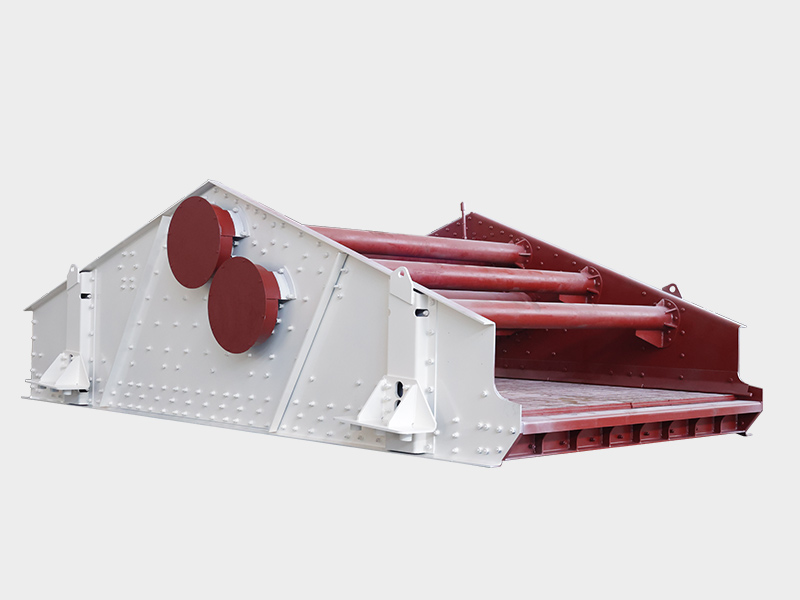

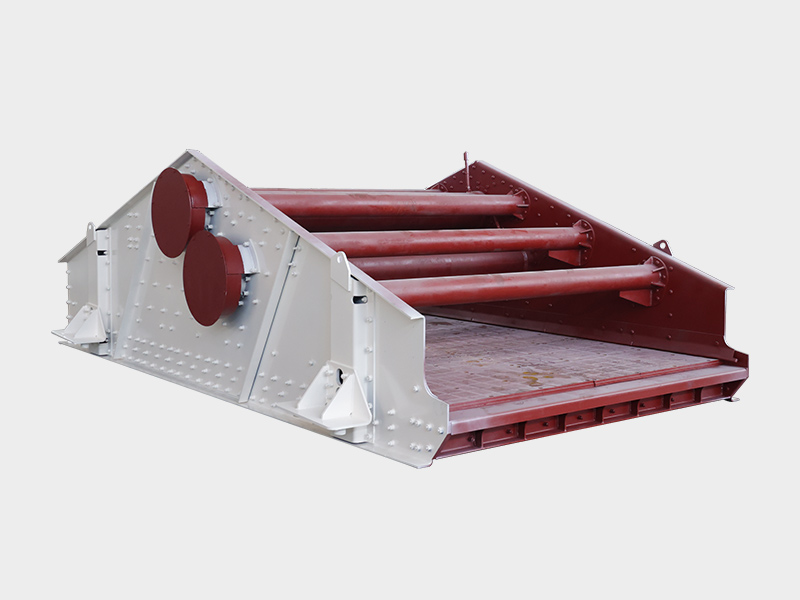

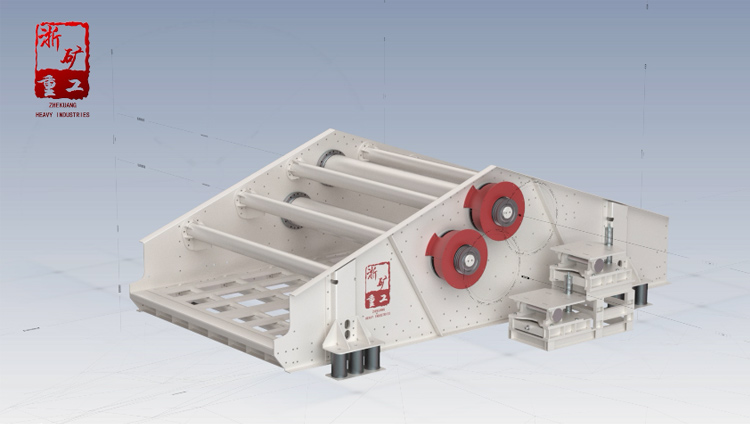

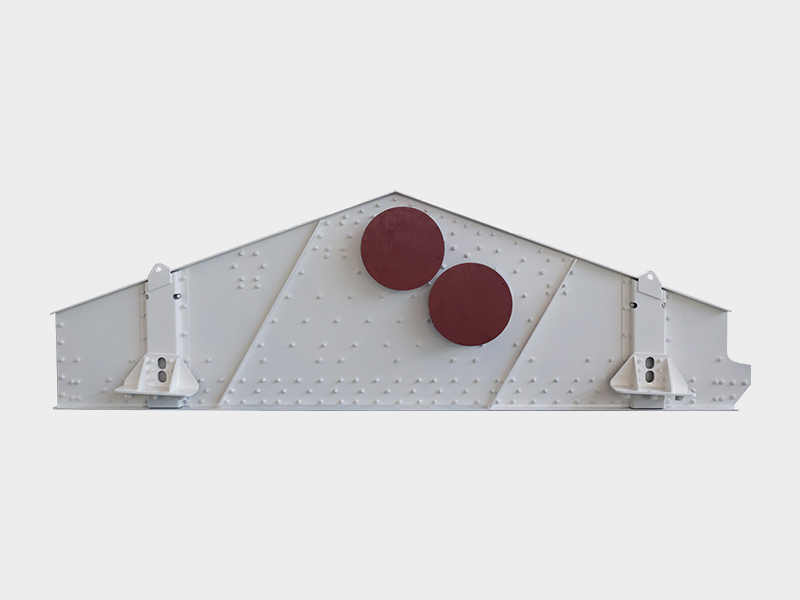

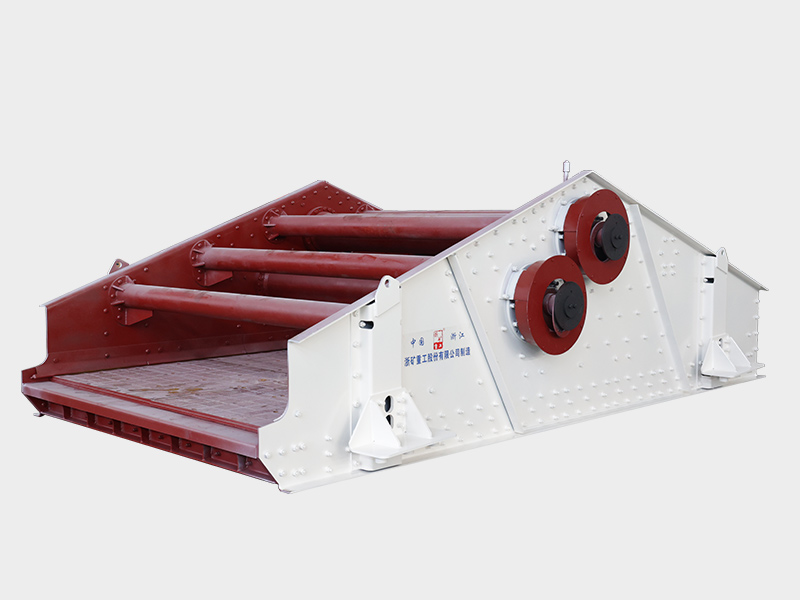

ZJS Series Linear Vibrating Screen is widely used in mining, coal, smelting, building materials, refractory materials, light industry, chemical industry and other industries.

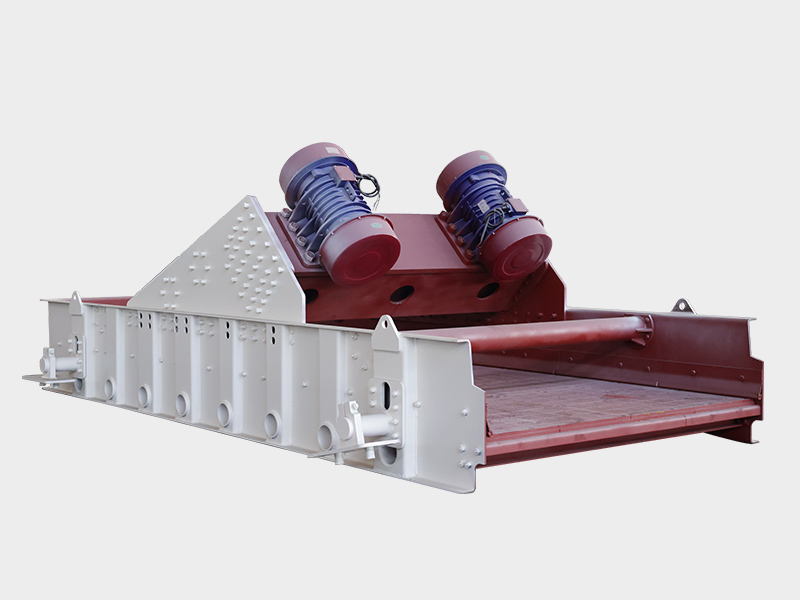

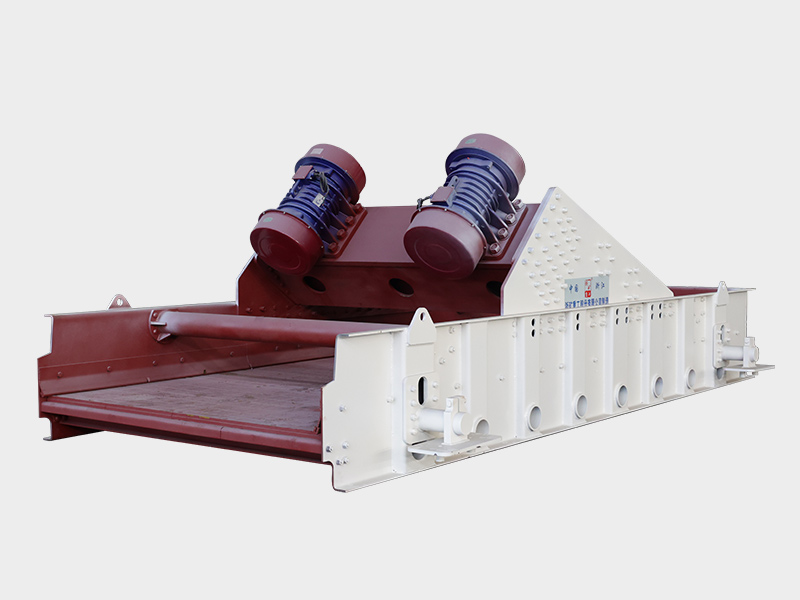

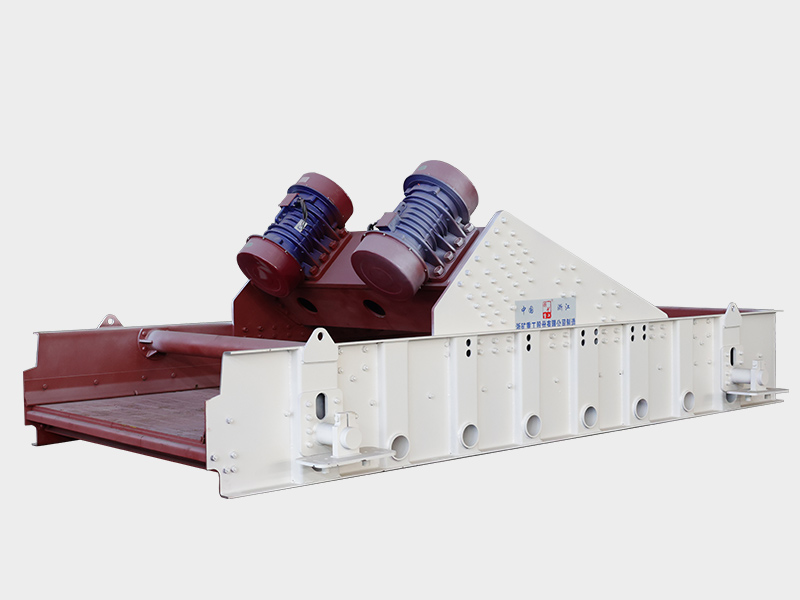

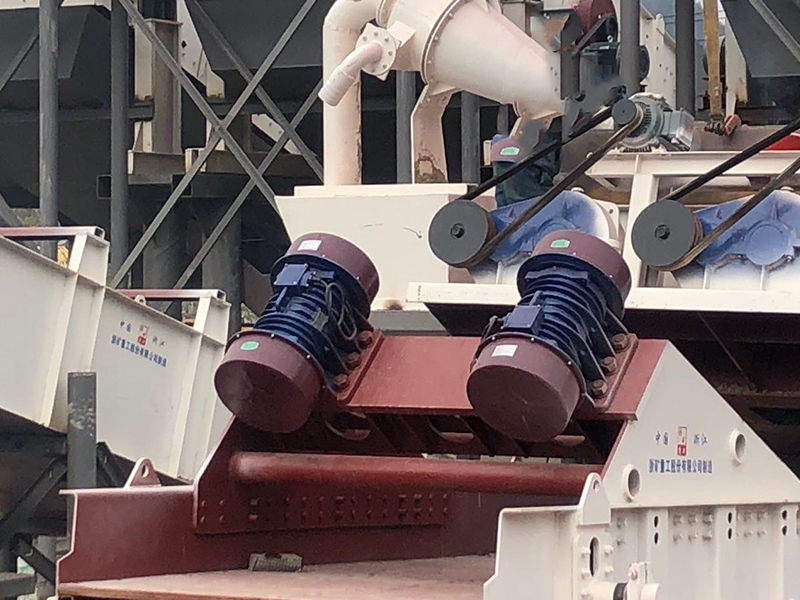

ZJS Linear Vibrating Screen is driven by dual vibrating motors. When two vibrating motors do synchronous and counter-rotating, the exciting force generated by the eccentric block cancels each other in the direction parallel to the motor axis, and stacks into a resultant force in the direction perpendicular to the motor axis, so the motion track of the screen machine for a straight line. The two motor shafts have an inclination angle relative to the screen surface, under the action of the combined force of the exciting force and the self-gravity of the material, the material is thrown up on the screen surface and moves forward in a straight line, and the medium and fine-grained materials are subjected to dry and wet screening, dehydration, de-intermediation, and de-sliming.
1. Simple and reasonable structure, high screening efficiency, low noise, low energy consumption, easy maintenance;
2. The unique screen structure design is convenient for quick replacement of the screen.
