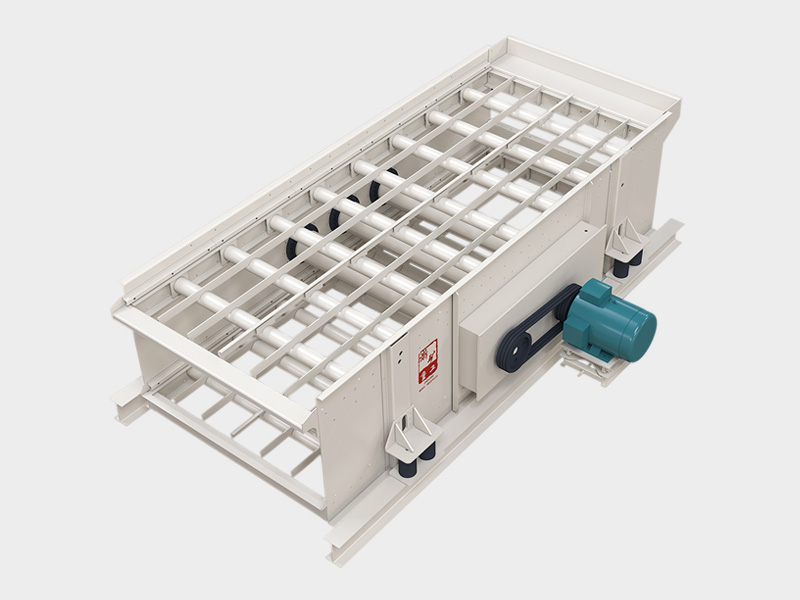

The movement trajectory of the SPS type horizontal three-axis elliptical vibrating screen is eccentric elliptical vibration, suitable for screening large, medium, and small specifications of materials. The entire series has three specifications, which can be used for dry and wet classification of crop materials in departments such as coal selection, mineral processing, building materials, power, and chemical industry.
The SPS type horizontal three-axis elliptical vibrating screen adopts a single motor driven three-axis eccentric exciter, and the three axes of the exciter are equipped with counterweight blocks and gears of the same specifications. The synchronous gear forces each shaft to maintain a stable phase difference, achieving two positive and one negative rotations, thereby generating excitation force and forcing the screen box to perform forced continuous elliptical motion.
1. Using synchronous gears to generate efficient elliptical motion on the three axes combines the advantages of both inclined circular 1. vibrating screens and horizontal linear vibrating screens.
2. It has the characteristics of good sieving performance, large processing capacity, small installation height, and high screening 2.accuracy, making it an ideal equipment for various mines, quarries, and mobile screening stations.
3. The elliptical throwing design can change the elliptical diameter and angle of the throwing material to meet the optimal needs of 3. the vibrating screen. The more fine material is separated in the vertical direction, the lower it is, and the faster it moves horizontally, 3. resulting in uneven material distribution. The adjustment of these throwing materials is easy to complete.
4. By unscrewing the loc1. Using synchronous gears to generate efficient elliptical motion on the three axes combines the advantages of both inclined circular 1. vibrating screens and horizontal linear vibrating screens.king pin from the central gear and rotating the central gear to the predetermined angle, the1. Using synchronous gears to generate efficient elliptical motion on the three axes combines the advantages of both inclined circular 1. vibrating screens and horizontal linear vibrating screens.n1. Using synchronous gears to generate efficient elliptical motion on the three axes combines the advantages of both inclined circular 1. vibrating screens and horizontal linear vibrating screens. locking the gear 4. in a new position to change the throwing angle.
